Gas Mass Flow Meter
ATO gas mass flow meter is used for high flow measurement with wholesale price. Rating pressure 1.5 MPa, flow range 0~50/120/300/800L/min for selection, output signal 4-20mA/RS485/pulse 0~5VDC, power supply DC 8~24V, working current 50mA. Chinese small gas flow meter with digital display, applicable gas air, nitrogen (N2), oxygen (O2), Argon, carbon dioxide (CO2).
Specification:
| Model | ATO-MF5000 |
| Flow Range (optional) | 0~15 L/min |
| 0~50 L/min | |
| 0~120 L/min | |
| 0~300 L/min | |
| 0~800 L/min | |
| Applicable Gas (optional) | Air |
| Nitrogen (N2) | |
| Oxygen (O2) | |
| Argon (Ar) | |
| Carbon Dioxide (CO2) | |
| Accuracy | ± (1.5 + 0.5 F.S.)% |
| Repeatability | 0.50% |
| Power Supply | DC 8~24V (50mA) |
| Output Signal (optional) | 4-20mA, RS485, pulse 0~5VDC |
| Pressure Rating | 1.5 MPa |
| Working Temperature | -20~60℃ |
| Humidity | <95% RH (no condensation) |
| Pin-out | DB9 |
| Calibration | Air @ 2℃, 101.325 kPa |
| Hazardous Rating | ExiaIICT4 |
Note: For more information, please click gas mass flow meter user manual.

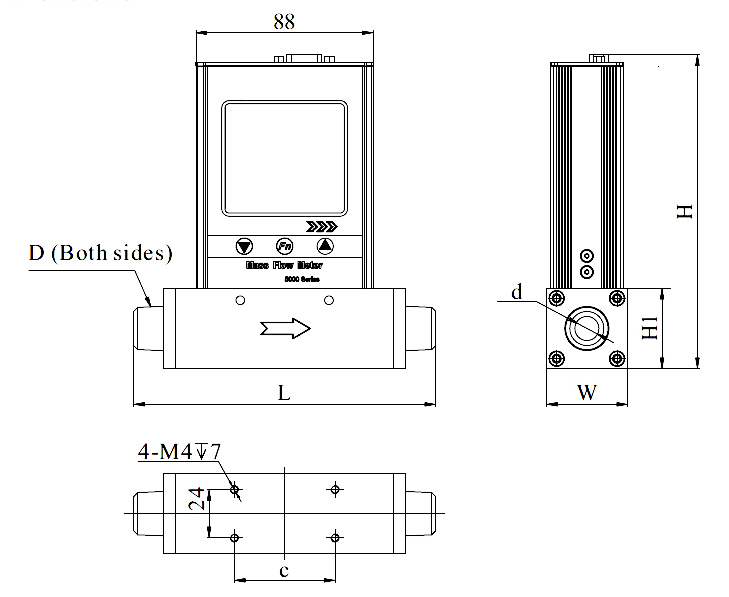

Dimension: (Unit: mm)
| Flow Range | DN | D | L | H | H1 | W | d | C |
| 0~15 L/min | 3 | 1/8 inch | 118 | 144 | 28 | 38 | Ф 3 | 36 |
| 0~50 L/min | 6 | 1/4 inch | 124 | 144 | 28 | 38 | Ф 6 | 36 |
| 0~120 L/min | 8 | 3/8 inch | 124 | 151 | 35 | 38 | Ф 8 | 50 |
| 0~300 L/min | 12 | 1/2 inch | 150 | 156 | 40 | 40 | Ф 12 | 50 |
| 0~800 L/min | 19 | 3/4 inch | 182 | 156 | 40 | 40 | Ф 19 | 70 |
