Oval Gear Flow Meter

Oral gear flowmeter belongs to a positive displacement flowmeter, in the flow meter is a class of high accuracy. Gear flowmeters are used for precise continuous or intermittent measurement of liquid flow or instantaneous flow in pipes. It uses a mechanical measuring element to continuously divide the fluid into a single known volume portion, and measures the total volume of flow according to the number of times the measuring chamber fills and discharges the fluid in that volume portion successively and repeatedly. The flow meters provided in ATO supplier have different diameters, such as DN10, DN15, DN20, DN25, DN40, DN50 and so on.

Features:

It is simple to install and easy to maintain. Just like liquid turbine flow meter.
The scene showed zero back. The pointer indicates the flow, and the double value shows the single and cumulative flow respectively.
The workmanship is exquisite. Multi-process construction, strong pressure resistance. Flange caliber support DN25-150 custom.

Specification:

Model	ATO-LC-E
Display	pointer single time, cumulative intelligent liquid crystal display
Output Signal	output of pulse, 4-20 mA output, RS485
Return to Zero	optional
Measurement Medium	diesel oil, gasoline
Port Size	DN10-200
Measurement Range	0.04-340 m3/h
Accuracy	0.5 grade, 0.2 grade
Medium Temperature	20 ℃-100 ℃
Working Pressure	106 Mpa, 25 Mpa, 6.4 Mpa
Working Temperature	30℃ ~ 80℃
Power Supply	DC 12V ~ DC 24V
Protection Level	IP65
Explosion Proof Grade	CT6
Material	cast iron, cast steel, stainless steel

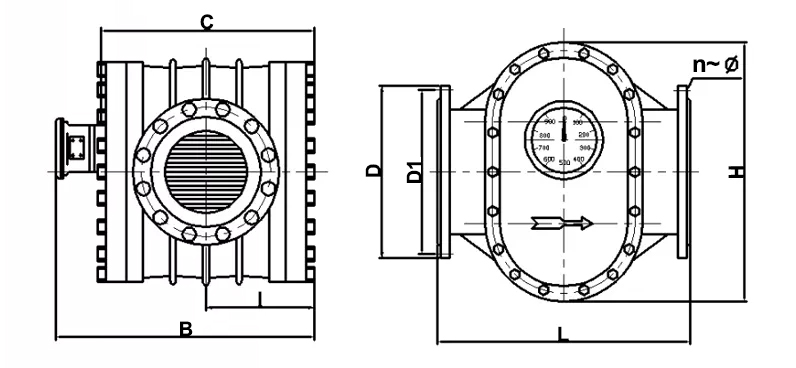

Dimension (Unit: mm):

DN	L	H	B	C	I	D	D1	N	φ
10	150	100	210	120	45	90	60	4	14
15	170	118	226	136	48	95	65	4	14
50	200	150	238	148	53	105	75	4	14
25	260	180	246	156	60	115	85	4	14
40	245	180	271	181	77	145	10	4	18
100	515	418	458	278	131	215	180	8	18
150	540	515	557	377	210	280	240	8	23
200	650	650	624	444	247	335	295	12	23
